MOBILE-II Parts

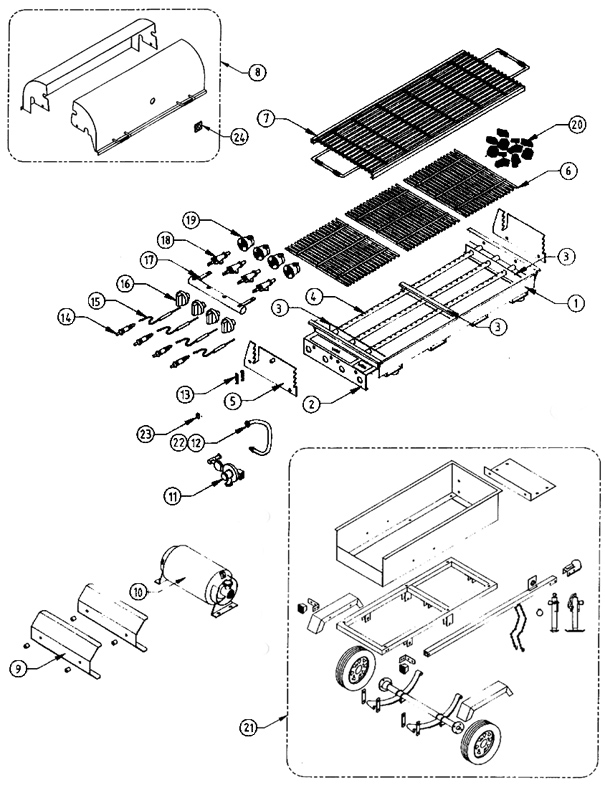

MOBILE II Parts Diagram
PLEASE NOTE: Model Number(s) in Red are Discontinued
▼
Item Specific Details Available on Linked Model Numbers Below
Share
Facebook Icon
Blogger Icon
Linkedin Icon
Stumbleupon Icon
Bookmarks
Pinterest Icon
Windows Icon
Reddit Icon
# Part Number Description # per Grill Lbs $ Each Qty
1 PG-II-FB Firebox 1 (118 lbs) $0.00
2 PG-INST2 Instrument Control Panel 1 (5 lbs) $0.00
3 PI-BNRBRKT2 Burner Bracket Supports (Set of 3) 1 (1 lbs) $0.00
4 PI-PGIIBNR Burner Tube - Stainless Steel 4 (9 lbs) $0.00
5 PI-GRLSPT Grill Grate Supports (Left & Right) 1 (13 lbs) $0.00
6 PG-IILRG Lava Rock Grate 3 (26 lbs) $0.00
7 PG-2460G Cooking Grate (Nickel Plated) 1 (51 lbs) $0.00
PG-2460GN Cooking Grate (Nickel Plated) 1 (51 lbs) $0.00
8 PG-200 Bread-Box Hood 1 (127 lbs) $0.00
9 PI-HTSHLD Heat Shields (Set of 2) 1 (5 lbs) $0.00
10 PI-40HB Propane Tank With Bracket (Horizontal) 1 (34 lbs) $0.00
11 PI-260-00 Regulator With Elbow & POL Fitting 1 (1 lbs) $0.00
12 PI-GH25375 26"L Propane Gas Supply Hose 1 (1 lbs) $15.00
13 HD-HP0375 Hair Pin 2 (1 lbs) $0.00
14 PI-21IGN Ignitor (Push Button - Red) 4 (1 lbs) $0.00
15 PI-7ELECT Ignitor Cable With Ceramic Insulator & Tip 4 (1 lbs) $0.00
16 PI-5619 Gas Control Knob 4 (1 lbs) $0.00
17 PG-MANFB Manifold - Main Gas Supply Distribution 1 (5 lbs) $0.00
18 BV-L777ESR Burner Valve (New Style - Stem Points at Legs) 4 (1 lbs) $0.00
BV-L777RDH Burner Valve (Old Style - Stem Points at Sky) 4 (1 lbs) $0.00
19 PI-100CTM Gas / Air Mixer 4 (1 lbs) $0.00
20 PI-LAVA Lava Rock 1 (50 lbs) $0.00
21 PG-2460AII Trailer & Adapter 1 (325 lbs) $0.00
22 GH-3753637 36"L Propane Gas Supply Hose 1 (1 lbs) $0.00
23 PB-375STL1 Elbow For Bottom of Manifold 1 (1 lbs) $0.00
24 PI-5972A Thermometer With Clip 1 (1 lbs) $0.00
(Prices F.O.B. Origin)
Some Assembly Required
